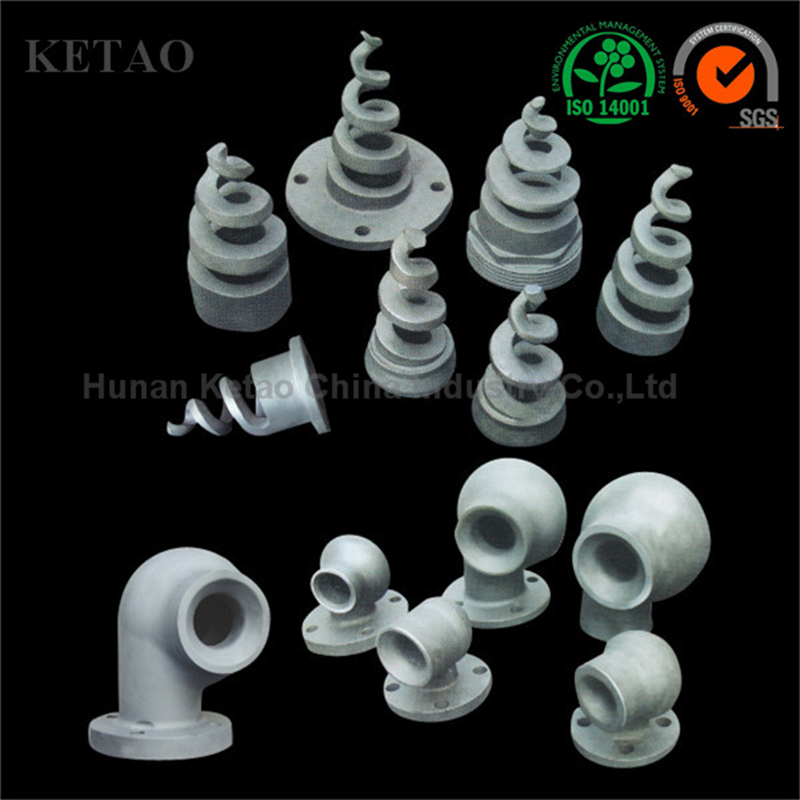

SiC swirl nozzle

The name of the nozzle is: silicon carbide desulfurization nozzle, silicon carbide nozzle, silicon carbide nozzle, desulfurization nozzle, stainless steel nozzle, stainless steel nozzle.
Working temperature: 1380 centigrade;
Working pressure: 0.3-5Mpa;
Liquid medium: limestone slurry;
Connection mode: thread, bond, flange;
Specifications: 1/2 inches to 4 inches of various specifications;
Scope of application: environmental protection desulfurization and dust removal, spray tower, waste washing, fire prevention and fire fighting, gas cooling;
Advantages of sprinkler: reduce nozzle blockage and prolong service life effectively.

Inquire
Product Description
  • The hollow conical large flow carborundum nozzle can spray the shape of the hollow cone spray, and the jet angle is 90 -120 degrees. This compact nozzle can make the liquid reach the flow in a given size pipe, and the flow rate is from 5.5 to 4140 litres per cent under the pressure of 3 bar.
  • Hollow cone large flow silicon carbide nozzle is the key component of the power plant, large boiler, desulphurization and dust removal unit.
  • It has excellent properties such as high strength, high hardness, strong corrosion resistance, severe wear, high temperature resistance and so on. It also has strong service life even under bad conditions.
  • The size of the hollow conical large flow carborundum nozzles is 2 inches, 3 inches, 4 inches and 6 inches. The large flow nozzle has a large and smooth flow channel, which basically eliminates the blocking phenomenon.
  • SiC desulphurization nozzle, silicon carbide nozzle, silicon carbide nozzle, desulphurization nozzle, stainless steel nozzle and stainless steel nozzle are a new ceramic material. It has the characteristics of high temperature resistance, anti oxidation, high strength, extreme cold and extreme heat, good thermal shock resistance, low temperature change, good thermal conductivity, wear resistance, corrosion resistance and so on.
SiC Technical Data:
Properties Sintered Silicon Carbide (SiSiC)
Reaction Bonded Silicon Carbide(RBSiC)
Recrystallized Silicon
Carbide (R-SiC)
Nitride Bonded
Silicon Carbide(NSIC )
SiC % 90~92  >99 ≥75
Si % 8~10 0 0
Si3N4 % 0 0 ≥23
Density g/cm3 >3.02  2.65~2.75  2.65~2.85
Porosity % <0.1  15-18 13-15
Bending strength (20℃)Mpa 260  80~100 160-180
Bending strength (1200℃)Mpa 280  90~110 170-180
compressive strength (20℃)Mpa 900  ≥300 580
Hardness Kg/mm2 2400  1800~2000 2000-3000
Thermal Conductivity (1200℃)w.m-1.k-1 45  36 19.6
Coefficient of thermal expansion(1200℃)
α×10-6/C
4.5  4.6 4.7
Modulus of elasticity (20℃)Gpa 330  280 170-190
Maximum operation temperature ℃ 1380  1650 1450

SiC Kiln Furniture Types& Application:
Beam/Roller Plate/Colling tube/Nozzle/Thermal tube/Structual parts/Sagger/Tableware/Sanitary Ceramic/Construction Tiles/Technical Ceramic/Electronic Ceramic/Electric Ceramic/Metallurgy/Chemical Industry
